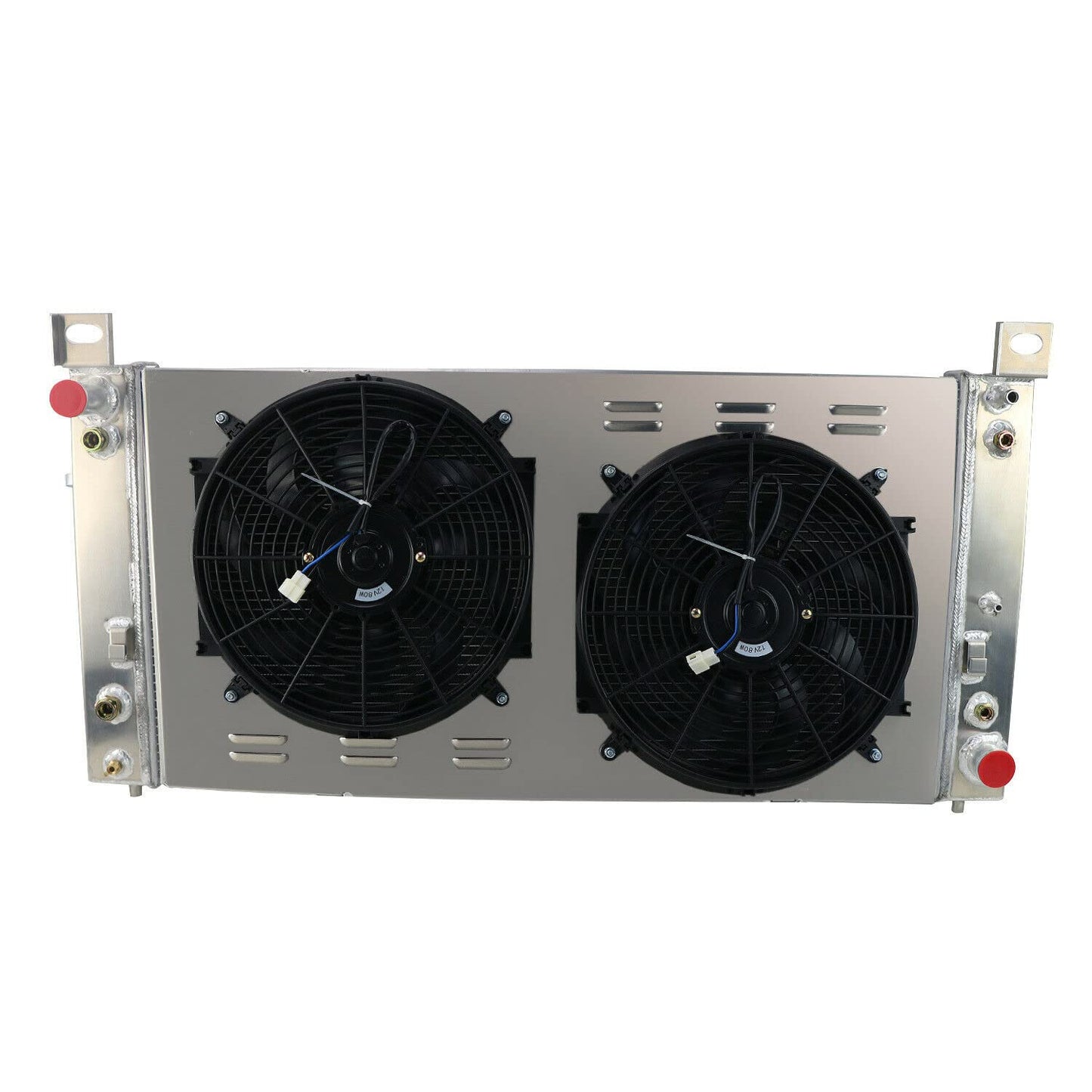

ALLOYWORKS CU2370 34" Core Radiator For 1999-2014 Chevy Silverado 1500 2500 Suburban Tahoe GMC Yukon GMC pickup Sierra 4.8 5.3 6.0L Radiators, 3 Row Full Aluminum Radiator Shroud Fan Relay Kit

Brand: AW ALLOYWORKS

Features:

• [Vehicle Fitment] For Hummer H2 6.0 V8 03-09 & Cadillac Escalade 6.0 V8 2002-2011; For Chevy Silverado Suburban Tahoe Escalade 4.8 5.3 6.0 6.2 V8; For Chevy Avalanche 1500 02-11/Silverado pickup 6.0 V8 99-11; For Chevy GMC Yukon 4.8/5.3 V8 GMC pickup Sierra 6.0 V8 00-11; For Chevy Suburban / Tahoe 4.8 / 5.3 6.0 V8 00-11;
• [Dimensions] Core Size: 34" x 17 5/8"; Overall Size: 40 1/3" x 21 3/7"; Inlet Dia:1 3/8"; Outlet Dia: 1 4/7"; Transmission Oil Cooler:φ26*292*5/8-18UNF(Z) ; Engine Oil Cooler: φ26*292*M20*1.5;

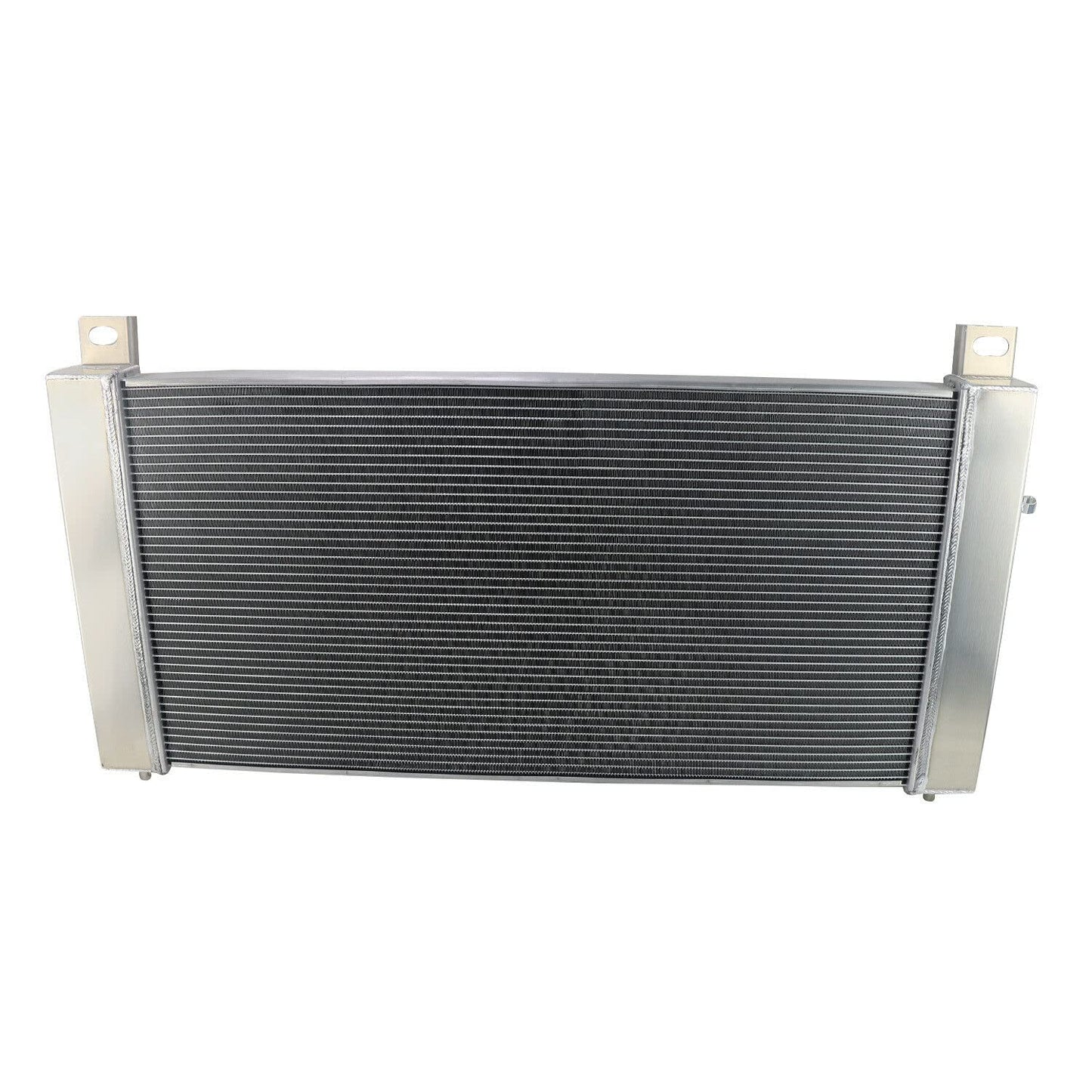

• [Premium Quality] Constructed with Aircraft AA5052 aluminum, this radiator is 100% welded and features brazed core technology with no epoxy. The high-quality aluminum core makes it a direct fit and built to last long. Before delivery, each radiator undergoes five checks in the production process and is pressure tested to ensure no leakage.
• [Higher Density Core] Cooling rows are spaced 3/8 inches apart, giving you 25% more rows within the core compared with most of the other radiators. Also, 14-16 cooling fins per inch give you approximately 1500 more cooling fins and provides 30% more cooling capacity than an usual aluminum radiator.
• [No Leaking Worries] All radiator have to go through 5 checks in the whole process.100% leaking and pressure tested. Thickened packing(either carton or wooden box), foam with shock absorption. Delivery: US Local Delivery.
• [Easy To Install] Brand-new radiator engineered and manufactured to meet original specifications for quick installation. CNC turret punch machine ensure the accuracy of radiator size. No Drilling or Modifications Needed for Installation.
• Please use Amazon's vehicle fitment tool to confirm that the part is correct for your vehicle application before buy.

model number: Aluminum Radiator

Part Number: ALLOYWORKS-2449

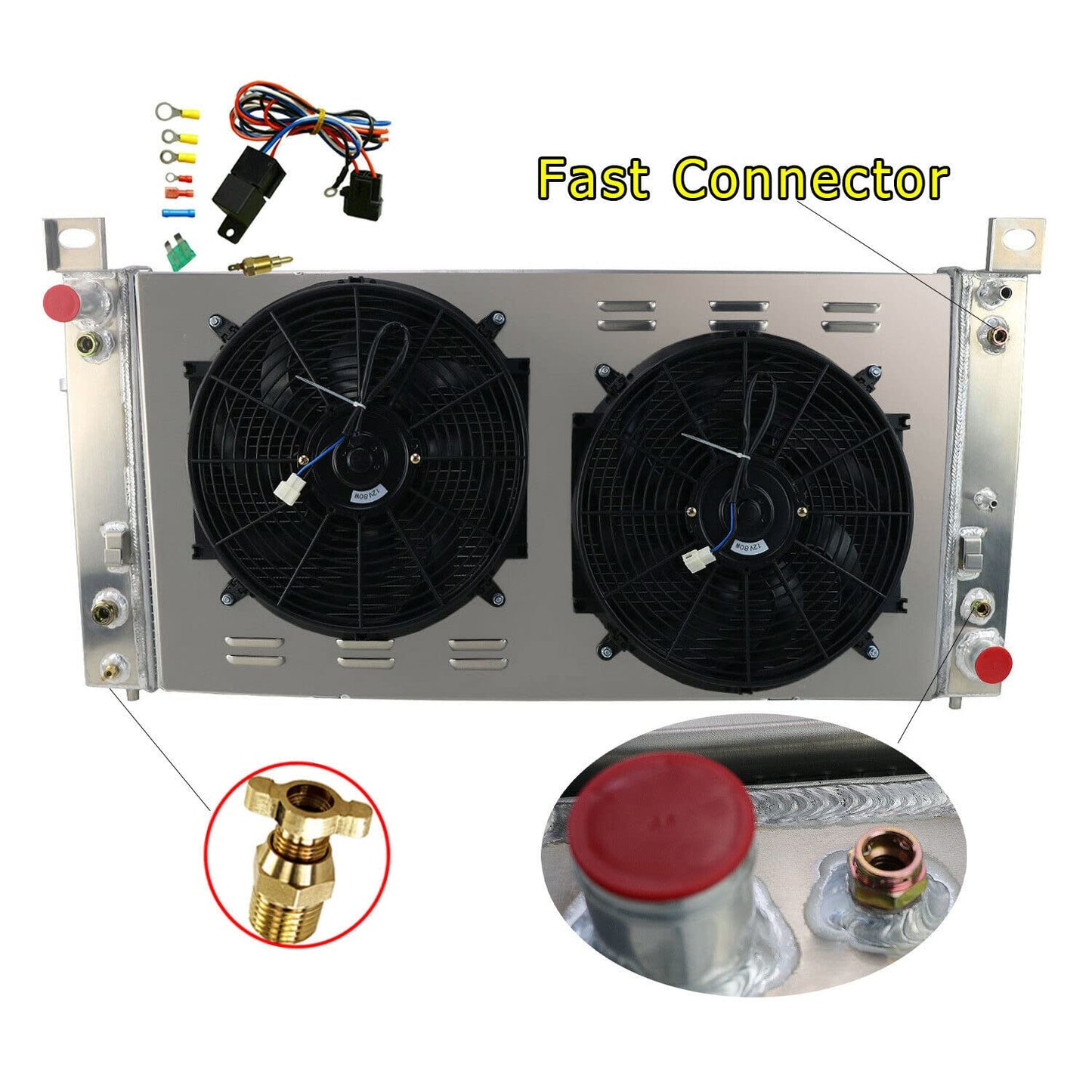

Details: OE/OEM Part Number: CU2370, DPI2370, CC2370, RAD2370(Transmission Oil Line fitting: Fast Inconnector Included)

Vehicle Fitment：
2002 - 2014 Cadillac Escalade
2003 - 2014 Cadillac Escalade ESV
2002 - 2013 Cadillac Escalade EXT
2007 - 2013 Chevrolet Avalanche
2002 - 2006 Chevrolet Avalanche 1500
1999 - 2013 Chevrolet Silverado 1500
2007 Chevrolet Silverado 1500 Classic
2001 - 2006 Chevrolet Silverado 1500 HD
2007 Chevrolet Silverado 1500 HD Classic
1999 - 2004 Chevrolet Silverado 2500
2001 - 2010 Chevrolet Silverado 2500 HD 6.0L Only (Not for 6.6L or 8.1L)
2007 Chevrolet Silverado 2500 HD Classic 6.0L Only (Not for 6.6L or 8.1L)
2001 - 2006 Chevrolet Silverado 3500 6.0L Only (Not for 5.7L, 6.6L or 8.1L)
2007 Chevrolet Silverado 3500 Classic 6.0L Only (Not for 6.6L or 8.1L)
2007 - 2010 Chevrolet Silverado 3500 HD 6.0L Only (Not for 6.6L)
2000 - 2014 Chevrolet Suburban 1500
2000 - 2010 Chevrolet Suburban 2500 6.0L Only (Not for 8.1L)
2000 Chevrolet Tahoe 4.8L & 5.3L Only (Not for 5.7L)
2001 - 2014 Chevrolet Tahoe
1999 - 2013 GMC Sierra 1500
2007 GMC Sierra 1500 Classic
2001 - 2006 GMC Sierra 1500 HD
2007 GMC Sierra 1500 HD Classic
1999 - 2004 GMC Sierra 2500
2001 - 2010 GMC Sierra 2500 HD 6.0L Only (Not for 6.6L or 8.1L)
2007 GMC Sierra 2500 HD Classic 6.0L Only (Not for 6.6L or 8.1L)
2001 - 2006 GMC Sierra 3500 6.0L Only (Not for 6.6L or 8.1L)
2007 GMC Sierra 3500 Classic 6.0L Only (Not for 6.6L or 8.1L)
2007 - 2010 GMC Sierra 3500 HD 6.0L Only (Not for 6.6L)
2000 GMC Yukon 4.8L & 5.3L Only (Not for 5.7L)
2001 - 2014 GMC Yukon
2000 - 2014 GMC Yukon XL 1500
2000 - 2013 GMC Yukon XL 2500 6.0L Only (Not for 6.6L or 8.1L)
2003 - 2009 Hummer H2

Radiator Size:
High Performance Racing Spec.
3 Row of tubes Core Racing Design

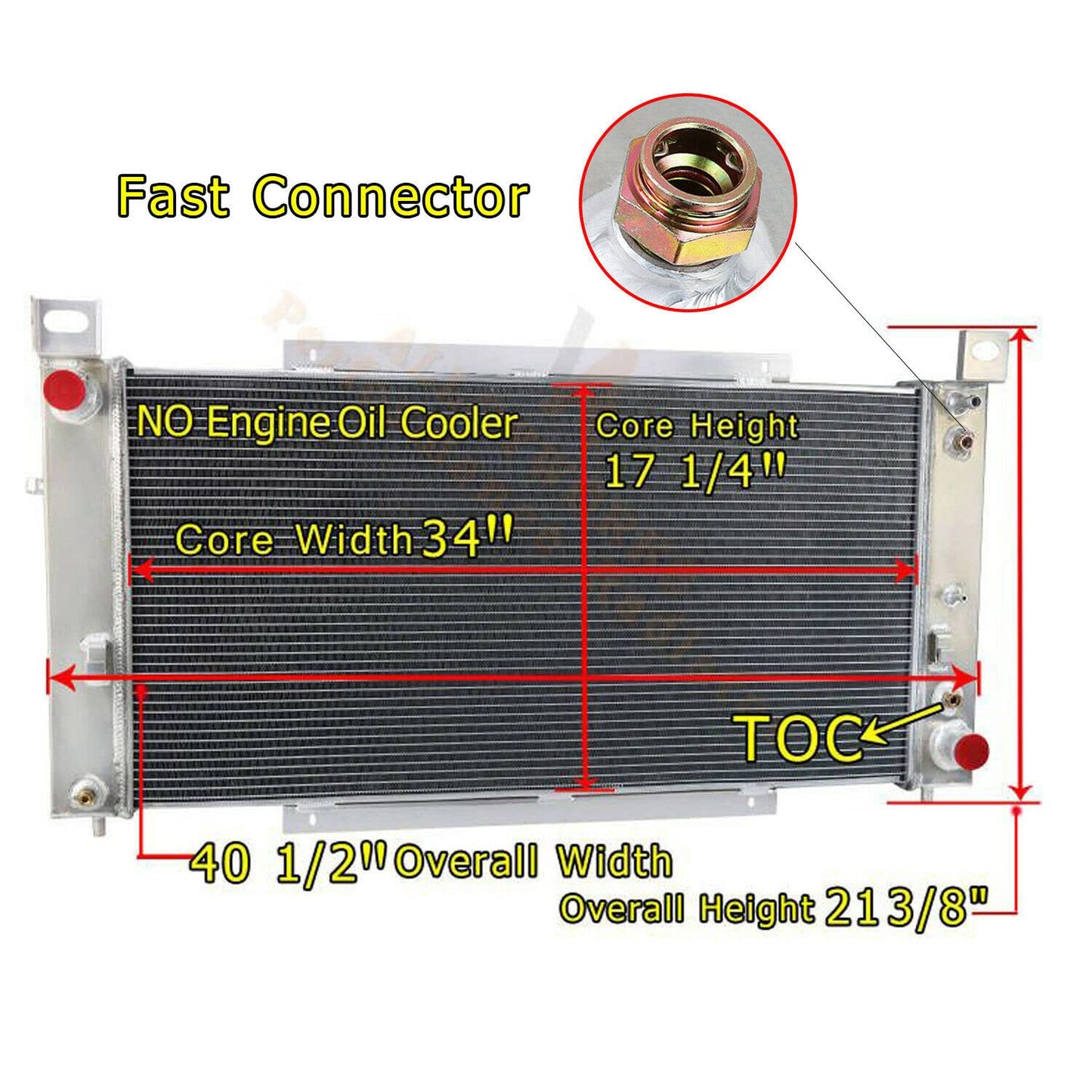

CORE DIMENSIONS: 34" W X 17 1/4" H
OVERALL DIMENSIONS: 40 4/5"W X 21 1/2"H X 5"T
TANK SIZE: 3 1/4" X 18 1/2"
INLET HOSE CONNECTION: 1 5/16" DRIVER SIDE
OUTLET HOSE CONNECTION: 1 9/16" PASSENGER SIDE
TRANSMISSION COOLER: φ26*292*5/8-18UNF(Z) On Passenger Side
ENGINE OIL COOLER: φ26*292*M20*1.5 On Driver Side
HAS 1/2" NIPPLE TOP PASSENGER SIDE
HAS 5/16" NIPPLE MIDDLE PASSENGER SIDE
Color: Silver
Material: Full Aluminium
Core and Tank: All Aluminum
High Performance Racing Spec.
Mounting Style: Bolt-On
Radiator style: Crossflow
Fit type: Vehicle Specific

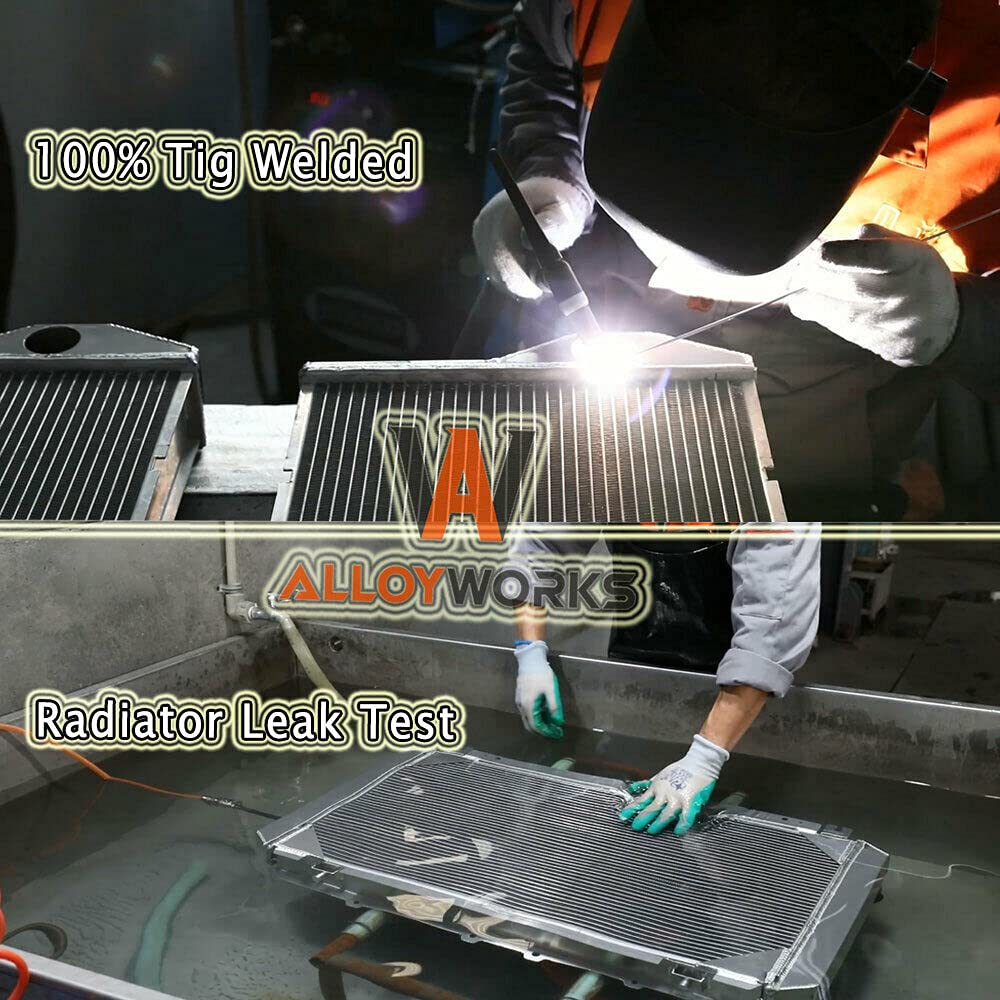

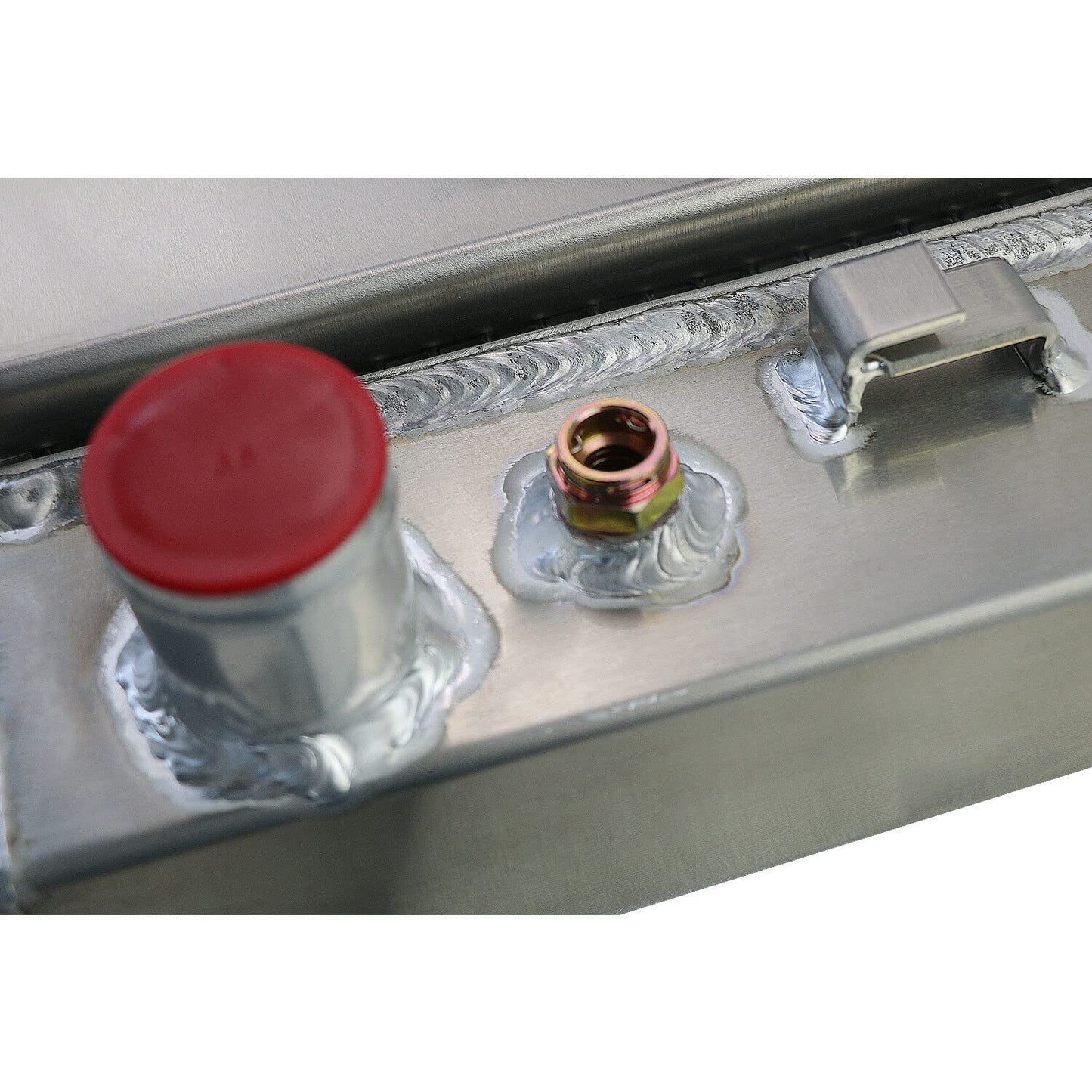

Crafts: 100% Tig welded
Delivery: Local Delivery
Fitment Type: Direct Replacement

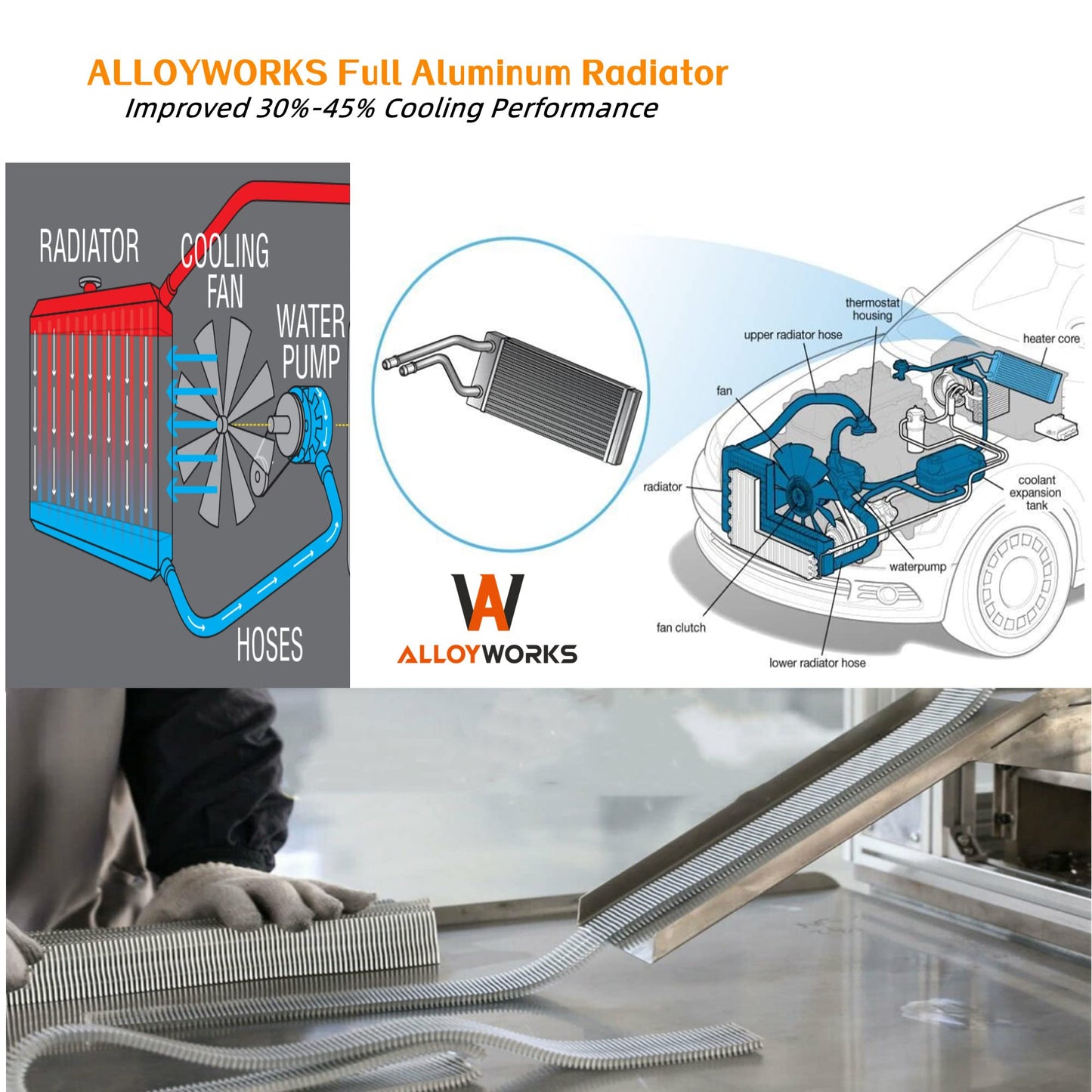

Performance: Up to 30%~45% more cooling
Placement on Vehicle: Engine Compartment
Surface Finish: Aircraft Grade Raw Aluminum

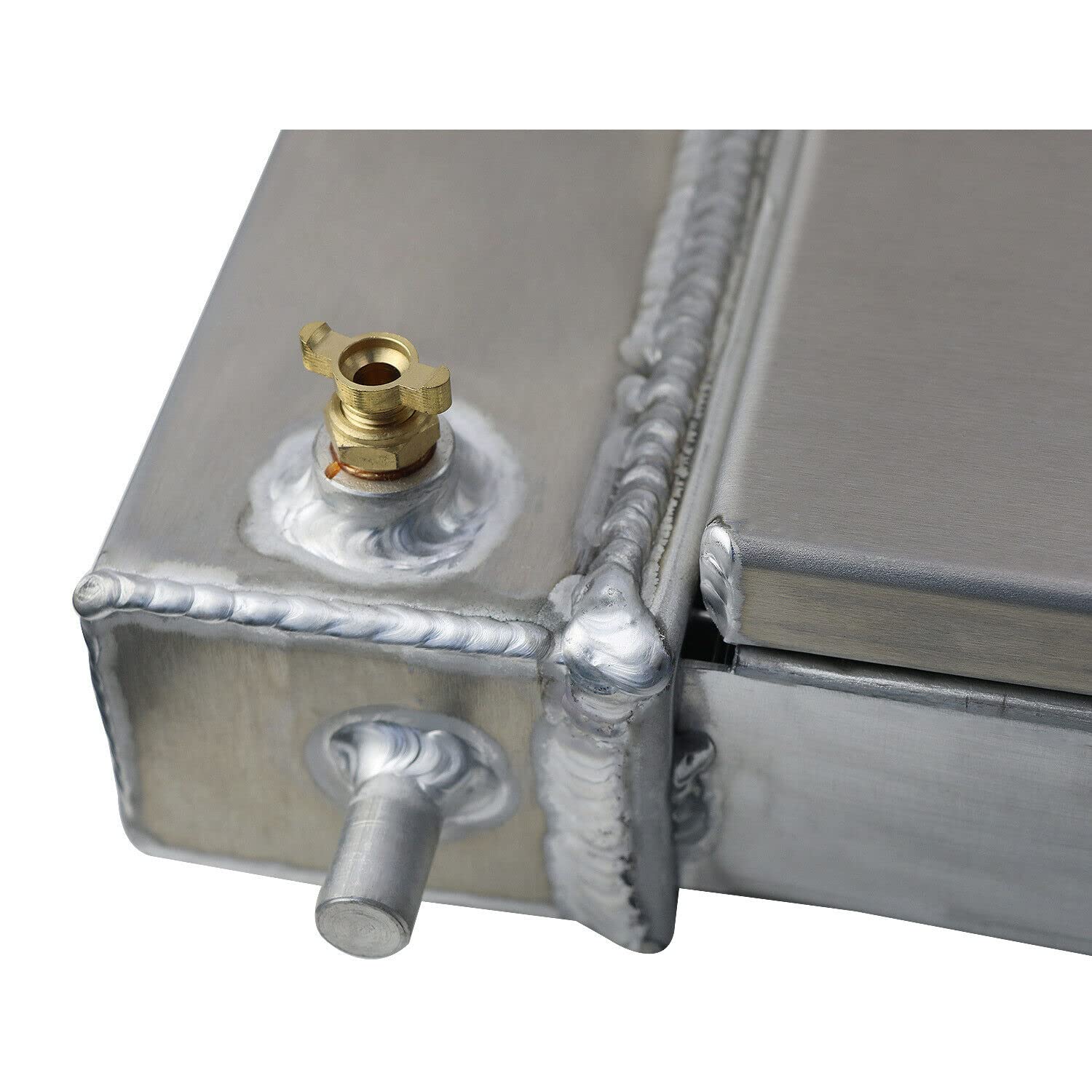

Petock Drain: OEM style brass petcock drain
Radiator Cap: CNC machined filler neck and cap
Transmission Cooler: Automatic and Manual

Fans Details：
Volt :12v
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 14.050”
Thickness (in): 2.500”
Number of Blades: 8 S-Type blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit Installation:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

Gentle Hint:
Parameters Meticulous Prior to Ordering.
Pls compare the overall width with your original radiator.
Warranty: 1 year warranty against manufacture defect and damage in transit.
Professional installation is highly recommended! No Fitting Instructions Supplied!
Please contact us for installation video or other any problem.

EAN: 9331849153840

Package Dimensions: 42.1 x 24.4 x 7.9 inches
